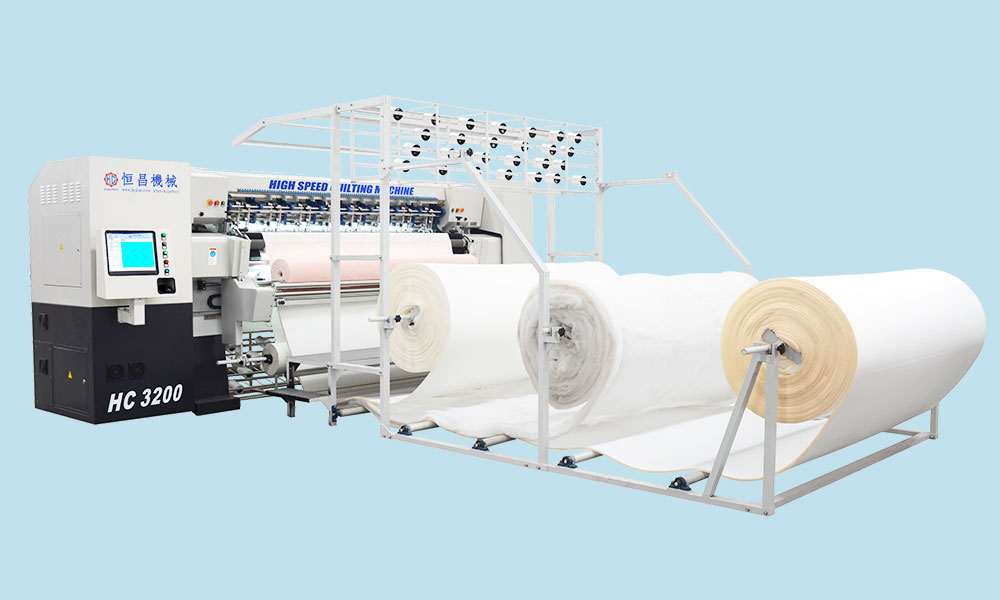

Quiting Machine HC3200

Basic Function Introduction: · New Fabric loading design. Easy loading material. ·Titled body design. Easy to operate and maintain. ·Thread brake detector. ·Pneumatic air thread cutting system. ·Operated using high quality sealed bearings that do not need lubrication. ·Adjustable presser foot...



Basic Function Introduction:
New Fabric loading design. Easy loading material.
Tilted body design. Easy to operate and maintain.
Thread brake detector.
Pneumatic air thread cutting system.
Operated using high quality sealed bearings that do not need lubrication.
Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness.
Emergency safety devices.
Improved quilting software control system allows more precise and stable quilting operations.
CAD pattern drawing pattern system allows you to create your own design.
Machine comes with 100-300 design patterns.
Error problem detection system.
Pattern compensation.

Innovative Function Introduction:
Auto adjustable feed rollers allow operator to adjust
various type of thickness.Fabric holder transport block ensures that machine operates with more stability and less noise.
Sealed fabric rollers allow better control of design pattern.
High speed machine operation and stable control.
Heavy duty tracking system for feed in and feed out material.

HC3000Technical Specification：

Size(L*W*H)	5100X1500X2500(mm)
Wdigh	5000kg
Rotation speed	2450mm
Production speed	600-1200 PRM
Production speed	80-280 m/h
Needle size	130/21 140/22  160/23  180/24
Needle arrangement	(50.8,76.2,127) (76.2,76.2,152.4)
Max.horizontal movement	450mm
Needle space	25.4mm
Voltage	380V/220V 50Hz/60Hz
Stitch	2-7 mm
Power	10 KW
Quilting thickness	≤80mm

19-inch Liquid Crystal Display：

A new generation of large capacity control system	High power spindle servo motor	New hopper stable balance system	Automatic thickness adjusting device for fabric thickness

Application：
Mattress panel,mattress pads,bedspreads,comforters,bedding,upholstery,and more.
