HC-QG-C Computer cutting machine
Panel Cutting Machine Special Fuction: -Computer controlled panel cutter; -Designed to work with quilting machine or on its own; -Machine is capable of cutting quilted panels,borders ,trimming sides; -PLC control and touch screen for easy operation;
Panel Cutting Machine Special Fuction:
-Computer controlled panel cutter;
-Designed to work with quilting machine or on its own;
-Machine is capable of cutting quilted panels,borders ,trimming sides;
-PLC control and touch screen for easy operation;
-Encoder setting of panel lengths for your own dimension cutting;.
-Infrared setting of panel lengths for accurate panel cutting,safe in operation;
-Pneumatic sharpening device to maintain cutting blades ,pneumatic material pressing system and pneumatic material pulling system to press and pull material automatically.
-Reliable border feeding and cutting mechanism.
-Auto working table and width adjustable design for precise length .
-Stable ,vibration free operation with low noise and high efficiency.
Technical Specification:
| Frame size (L×W×H) | 3870×3860×2400mm |
| Weight | 1500kg |
| Length of board | 2000mm |
| Thickness | 3-80 mm |
| Width | 100-2500 mm |
| Speed | 7000 mm/min |
| Power | 3KW |
| Power supply | 380V/50V 220V/60HZ |
| Air pressure | 0.4-0.8 Mpa |
Feature Icon:
 |
 |
 |
 |
| Edge cutting mechanism | Slitting device | Cut fabric | Cut fabric |
Applications:

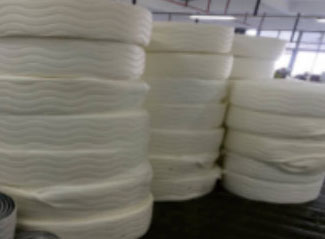

Mattress panel, pads, bedspreads, bedding, comforters and so on.
